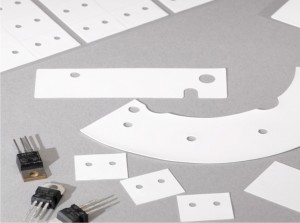

The highly thermally conductive White Group with their well balanced thermal and electrical or dielectrical behavior are created by filling a silicone elastomer base with aluminum oxide. An increase in mechanical strength can be achieved by fiberglass reinforcement. Both the unreinforced and reinforced film types can optionally be supplied with an adhesive coating. In general, however, the very good self-adhesion of the film will be sufficient for the mounting required.
Possible Thickness: 0.125mm – 0.500mm
audio and video components
power converters (AC-DC, DC-DC)
Property Symbol Unit 86/30 Color white Thermal Properties Thermal Resistance Rth K/W 0.22 Thermal Impedance Rti °Cmm²/W
Thermal Conductivity λ W/mK 2.5 Electrical Properties Breakdown Voltage Ud;ac kV 1.5 Dielectric Breakdown Ed;ac kV/mm 7.0 Volume Resistivity Ωcm 2.5×1011 Dielectric Loss Factor tan δ 1 2.2×10-2 Dielectric Constant εr 1 3.0 Mechanical Properties Overall Thickness (±10%) mm 0.225 Hardness Shore A 70 – 80 Tensile Strength N/mm² 2.0 Elongation % 31 Physical Properties Application Temperature °C -60 to +250 Density ρ g/cm³ 2.33 Flame Class UL 94V-0
