Softtherm 86/120 - Keratherm

This Softtherm® material is a good alternative if you are looking for a high insulation, a very good compressibility and a good thermal conductivity.

Possible Thickness: 0.5mm – 5.0mm

Applications

• Properties

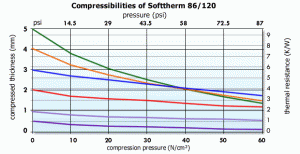

• Graphs

• Property	Symbol	Unit	86/120
  * – Youngs Modulus sample size 30x30x2.5mm3;   – variable contact pressure;   – compression 50% of measured thickness;
  Color			green
  Thermal Properties
  Thermal Resistance	Rth	K/W	0.83
  Thermal Impedance	Rti	°Cmm²/W Kin²/W	302 0.47
  Thermal Conductivity	λ	W/mK	1.5
  Electrical Properties
  Breakdown Voltage	Ud;ac	kV	4
  Dielectric Breakdown	Ed;ac	kV/mm	8
  Volume Resistivity		Ωcm	1.0×1011
  Dielectric Loss Factor	tan δ	1	8.0×10-3
  Dielectric Constant	εr	1	3.5
  Mechanical Properties
  Measured Thickness	(±10%)	mm	0.5
  Hardness		Shore 00	30 – 45
  Youngs Modulus*		N/cm²	111
  Physical Properties
  Density	ρ	g/cm³	2.3
  Application Temperature		°C	-40 to +150
  Flame Class		UL	–
  Total Mass Loss	TML	Ma.-%	< 0.18

• (Click for full-size)
